600W Explosion Proof LED Flood Light ATEX Zone 1 Zone 2 Hazardous Area 78000lm IP66 Die-Cast Aluminum ADC12
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | Fins board, BOCAQ |
| Zertifizierung: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Modellnummer: | EPFL-600W-Z1 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stk |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Packung + Blase oder nach Maß |
| Lieferzeit: | 10-15 Tage oder bestätigen |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück/Monat |
|
Detailinformationen |
|||
| Leistung: | 600W | Lichtstrom: | 78000lm |
|---|---|---|---|
| Wirksamkeit: | 130lm/W | Farbtemperatur: | 5000K (Kaltweiß) |
| Abstrahlwinkel: | 120° | Eingangsspannung: | Wechselstrom 100–277 V, 50/60 Hz |
| LED-Chip: | Bridgelux SMD 3030 | IP-Bewertung: | IP66 |
| Gehäusematerial: | ADC12 aus Aluminiumdruckguss | Linsenmaterial: | Gehärtetes Glas 5 mm |
| Betriebstemperatur: | -40°C bis +60°C | Zertifizierung: | ATEX II 2G Ex d IIC T6 Gb |
| Lebensdauer: | ≥50.000 Stunden L70 | Garantie: | 5 Jahre |
| Hervorheben: | 600W Explosion Proof Light,ATEX Zone 1 LED Floodlight,High Power Hazardous Lighting |
||
Produkt-Beschreibung

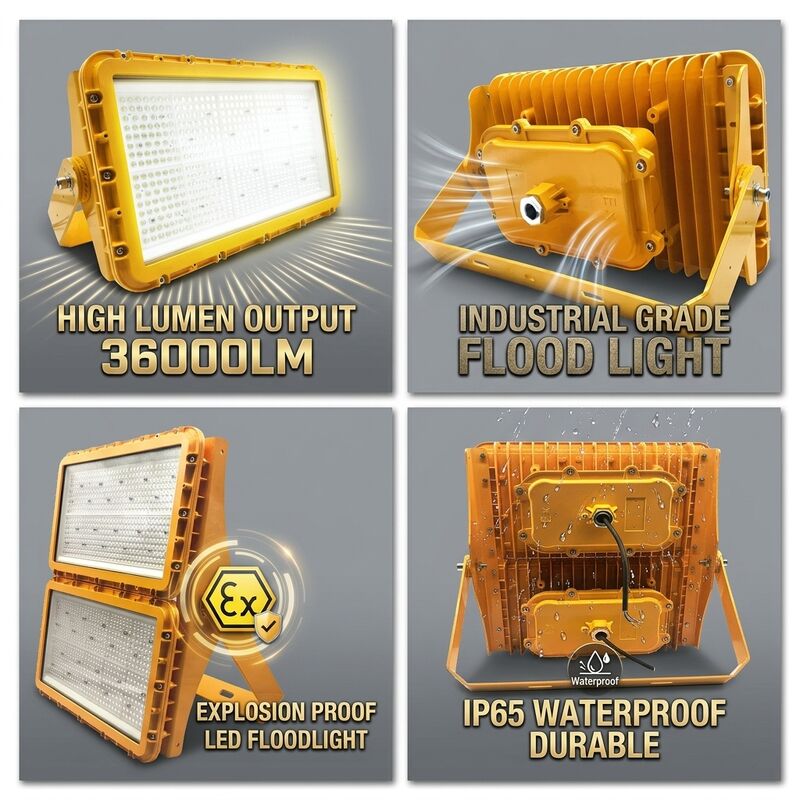

600W Explosion Proof LED Flood Light ATEX Zone 1 Zone 2 Hazardous Area 78000lm IP66 Die-Cast Aluminum ADC12
600W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting
The EPFL-600W is a 600W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 78000lm total luminous flux with 130lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-Cast Aluminum ADC12 with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Flagship High-Power Model - 78000lm output replaces traditional 2000W HID fixtures, delivering over 65% energy savings while providing superior illumination uniformity
Applications
Ideal for hazardous classified areas including:
- Large-scale refineries, petrochemical complexes, and heavy industrial plants
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-Z1 |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 78000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
