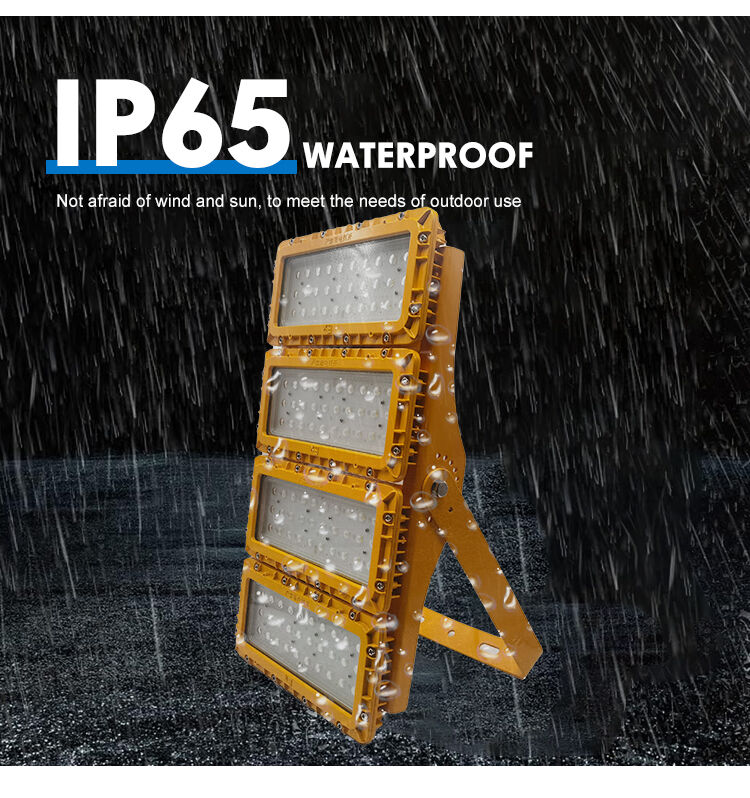

300W LED Explosion Proof Flood Light High Temperature T5 80°C Steel Mill Foundry Desert IP66 Die-Cast Aluminum ADC12
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | ECER |
| Zertifizierung: | ATEX II 2G Ex d IIC T5 Gb, CE, ISO 9001:2015 |
| Modellnummer: | EPFL-300W-HIT |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stk |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Packung + Blase oder nach Maß |
| Lieferzeit: | 10-15 Tage oder bestätigen |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück/Monat |
|
Detailinformationen |
|||
| Leistung: | 300W | Lichtstrom: | 33000lm |
|---|---|---|---|
| Wirksamkeit: | 110lm/w | Abstrahlwinkel: | 90° |
| Farbtemperatur: | 5000k | LED-Chip: | Bridgelux SMD 3030 |
| IP-Bewertung: | IP66 | Gehäusematerial: | ADC12 aus Aluminiumdruckguss mit Hochtemperaturbeschichtung |
| Betriebstemperatur: | -20°C bis +80°C | Zertifizierung: | ATEX II 2G Ex d IIC T5 Gb |
| Lebensdauer: | ≥50.000 Stunden L70 | Garantie: | 5 Jahre |
| Hervorheben: | 300W explosion proof LED flood light,high temperature explosion proof light 80°C,die-cast aluminum explosion proof flood light |
||
Produkt-Beschreibung
300W LED Explosion Proof Flood Light High Temperature T5 80°C Steel Mill Foundry Desert IP66 Die-Cast Aluminum ADC12
The EPFL-300W-HIT is a 300W LED explosion proof flood light delivering 33000lm luminous flux with 110lm/W efficiency. ATEX II 2G Ex d IIC T5 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with High-Temp Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 33000lm total luminous flux at 110lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T5 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- T5 High-Temperature Rating - Certified for continuous operation at 80°C ambient with high-temperature silicone gaskets and derated driver electronics for extended service life in extreme heat
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Steel mills, foundries, glass manufacturing, desert oil and gas installations, and high-ambient industrial zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-HIT |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 33000lm |
| Efficacy | 110lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with High-Temp Coating |
| Operating Temperature | -20°C to +80°C |
| Certification | ATEX II 2G Ex d IIC T5 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-HIT design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
