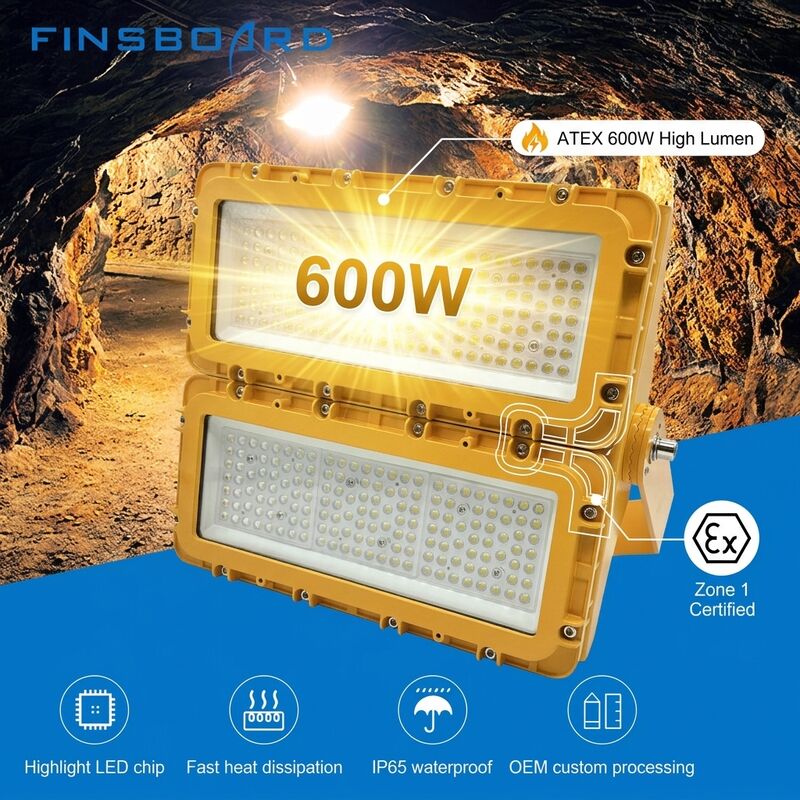

600W LED Explosion Proof Flood Light ATEX IIB T6 IP65 RFEPL8280 60° Beam LUMILEDS
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | ECER |
| Zertifizierung: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Modellnummer: | RFEPL8280-600W |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stk |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Packung + Blase oder nach Maß |
| Lieferzeit: | 10-15 Tage oder bestätigen |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück/Monat |
|
Detailinformationen |
|||
| Leistung: | 600W | Lichteffizienz: | 100-120lm/w |
|---|---|---|---|
| LED-Chip: | LUMILEDS SMD | Abstrahlwinkel: | 60° |
| Eingangsspannung: | Wechselstrom 100–277 V | IP-Bewertung: | IP65 |
| CRI: | ≥80 | Leistungsfaktor: | ≥0,95 |
| Material: | Aluminium + gehärtetes Glas | Explosionsgeschütztes Zeichen: | Ex db mb IIB T6 – IP65 – WF2 |
| Zertifizierung: | ATEX, CE, ROHS, CCC | Produktgröße: | L425×B485×H165mm |
| Nettogewicht: | 21 kg | Lebensdauer: | 50000h |
| Betriebstemperatur: | -40°C bis +60°C | ||
| Hervorheben: | 600W explosion proof LED flood light,ATEX IIB T6 explosion proof light,IP65 rated LED flood light |
||
Produkt-Beschreibung
600W LED Explosion Proof Flood Light - ATEX IIB T6 Certified RFEPL8280 Series
The RFEPL8280-600W is a 600W high-power LED explosion proof flood light engineered with LUMILEDS SMD chip technology, delivering 100-120lm/W efficiency for large-scale hazardous area applications. ATEX Ex db mb IIB T6 certified with IP65 protection, this heavy-duty 21kg floodlight provides powerful 60° focused illumination for Zone 1, Zone 2 gas and Zone 21, Zone 22 dust environments.
Key Features
- 600W High Power Output - Massive illumination coverage with LUMILEDS SMD chips achieving 100-120lm/W, LM-80 tested for long-term reliability
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating suitable for IIA, IIB, IIC explosive atmospheres in temperature classes T1-T6
- 180° Adjustable Bracket - Flexible installation angle adjustment for optimal light positioning in large-scale installations
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance for heavy industrial environments
- Stainless Steel Hardware - All fittings in high-quality stainless steel, passing 500-hour salt spray corrosion testing for offshore durability
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate handling 600W thermal load efficiently
- 6KV Lightning Protection - Built-in surge protection ensuring reliable operation in exposed outdoor installations
- 60° Focused Beam - Concentrated light distribution for long-distance illumination and targeted area coverage
- IP65 Waterproof - Sealed against dust ingress and water jets, suitable for outdoor and wash-down environments
- Universal Voltage - AC 100-277V input with power factor ≥0.95, compatible with global electrical systems
Versatile Mounting Options
The RFEPL8280 series supports six mounting configurations: ceiling mount, boom mount, bracket mount, wall mount, flange mount, and guardrail mount.
Applications
Suitable for large-scale hazardous environments including:
Oil extraction and refining facilities
Chemical processing and storage plants
Offshore oil platforms and FPSOs
Military and defense installations
Electric power generation stations
Combustible dust environments (Zone 21, Zone 22)
Normal and emergency lighting in hazardous areas
Technical Specifications
| Model Number | RFEPL8280-600W |
| Item No. | RFEPL8280 |
| Power | 600W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Power Supply | AC 100-277V 50/60Hz |
| Beam Angle | 30° / 60° / 90° (configurable) |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Product Size | L425 × W485 × H165mm |
| Net Weight | 21kg |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
Why Choose RFEPL8280 Series?
The RFEPL8280 explosion proof LED flood light series delivers industrial-grade reliability with LUMILEDS chip technology and ATEX certification. Each unit undergoes 500-hour salt spray testing with all-stainless-steel hardware, ensuring decades of corrosion-resistant service. The 600W model provides the highest illumination output in the series, ideal for large-area coverage in refineries, offshore platforms, and heavy industrial facilities.
For volume pricing, OEM customization, or technical specifications, please contact our sales team.
