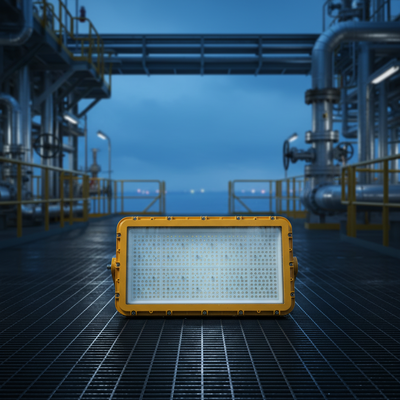

300W LED Explosion Proof Flood Light 60° Medium Beam Tank Area ATEX IIB T6 IP65
Produktdetails:
| Herkunftsort: | Guangdong, China |
| Markenname: | ECER |
| Zertifizierung: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Modellnummer: | RFEPL8280-300W-NB60 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stk |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Packung + Blase oder nach Maß |
| Lieferzeit: | 10-15 Tage oder bestätigen |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück/Monat |
|
Detailinformationen |
|||
| Leistung: | 300W | Lichteffizienz: | 100-120lm/w |
|---|---|---|---|
| LED-Chip: | LUMILEDS SMD (LM-80) | Abstrahlwinkel: | 60° |
| Eingangsspannung: | Wechselstrom 100–277 V | IP-Bewertung: | IP65 |
| CRI: | ≥80 | Leistungsfaktor: | ≥0,95 |
| Material: | Aluminium + gehärtetes Glas | Explosionsgeschütztes Zeichen: | Ex db mb IIB T6 – IP65 – WF2 |
| Blitzschutz: | 6KV | Zertifizierung: | ATEX, CE, ROHS, CCC |
| Lebensdauer: | 50.000 Stunden | Betriebstemperatur: | -40°C bis +60°C |
| Salzspray -Test: | 500 Stunden (Edelstahl) | ||
| Hervorheben: | 300W explosion proof LED flood light,ATEX IIB T6 explosion proof light,IP65 rated explosion proof floodlight |
||
Produkt-Beschreibung
300W LED Explosion Proof Flood Light 60° Medium Beam Tank Area ATEX IIB T6 IP65
The RFEPL8280-300W-NB60 is a 300W LED explosion proof flood light from the RFEPL8280 series, featuring Medium 60° focused beam with LUMILEDS SMD chip technology delivering 100-120lm/W efficiency. ATEX Ex db mb IIB T6 certified with IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
- LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering in hazardous environments
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6, Zone 1/Zone 2 gas and Zone 21/Zone 22 dust
- 60° Beam Configuration - Medium 60° focused beam optimized for the specific application requirements
- 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning in any installation scenario
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate ensuring reliable 300W continuous operation
- 6KV Lightning Protection - Built-in surge protection for exposed outdoor installations in lightning-prone regions
- High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
- All Stainless Steel Hardware - 500-hour salt spray certified fittings for long-term corrosion resistance
- 60° Targeted Illumination - Balanced beam angle providing excellent coverage for tank farms and process unit perimeters with minimal light spill
- IP65 Waterproof WF2 - Fully sealed against dust and water jets, corrosion-resistant for harsh industrial atmospheres
- Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical distribution systems
6-in-1 Versatile Mounting
The RFEPL8280 series supports all standard mounting configurations:
Ceiling mount
Boom mount
Bracket mount
Wall mount
Flange mount
Guardrail mount
Applications

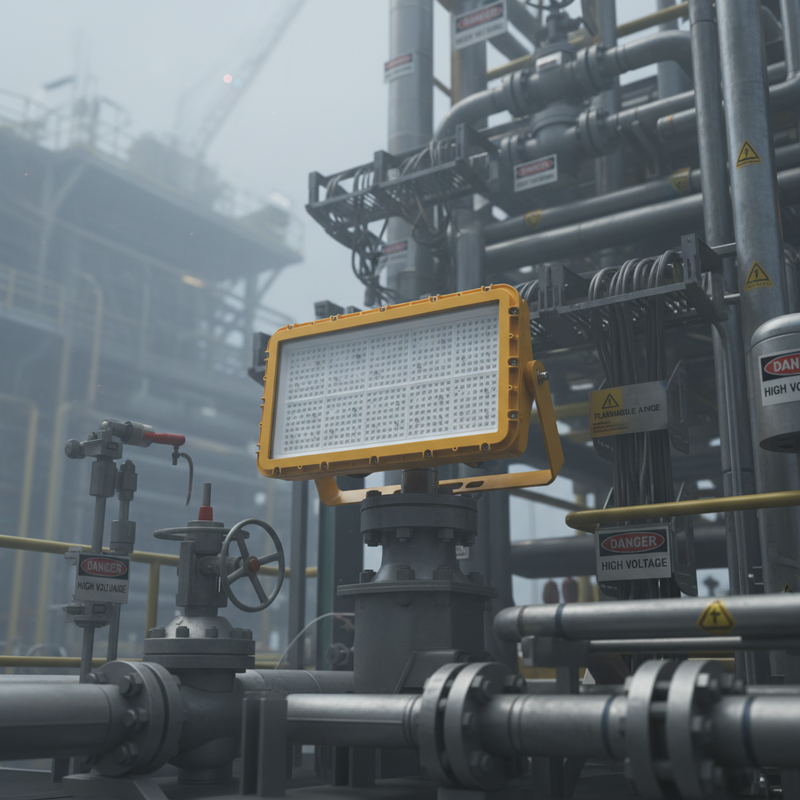

Engineered for Storage tank farms, pipe racks, process areas, and work platforms in refineries:
Oil extraction, refining and petrochemical processing
Offshore platforms, FPSOs and drilling rigs
Chemical storage, mixing and processing facilities
Electric power generation and distribution stations
Military and defense hazardous installations
Combustible dust environments (Zone 21, Zone 22)
Emergency and normal lighting in classified areas
Technical Specifications
| Model Number | RFEPL8280-300W-NB60 |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Beam Angle | 60° |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and three beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
